Platinum-based Fine Wire Materials
What are "Platinum-based Fine Wire Material"?
It is a highly functional material made by processing platinum or its alloys into fine wires, and has excellent corrosion resistance, heat resistance, and stable electrical properties. ”nanoplat™”, a reinforced platinum material developed by our company with dispersed ZrO₂ particles, is resistant to deformation even at high temperatures and is suitable for applications requiring higher precision and reliability.
Our reliable fine wire processing technology makes miniaturization, low power consumption, and other improvements with finer wires possible.
Reliable wire processing technology.
Platinum group fine wires are widely used for various types of sensors, medical devices, electrodes, etc. due to their stable environmental resistance and electrical characteristics.
Features
- Ultra-fine wires are available (up to Φ10µm).
- Smooth and clean wire surfaces with excellent fine wire processing technology
- Fine wires of various platinum alloys and oxide dispersion strengthened platinum materials are available upon request.
| Material | Melting point (℃) | Density (g/cm3) | Vickers hardness (HV) | Tensile strength (soft) (MPa) |
Specific resistance (soft) (µΩ･cm[20℃]) |
|
|---|---|---|---|---|---|---|
| Soft | Hard | |||||
| Pt-Rh5% | 1,818 | 20.80 | 70 | 160 | 225 | 17.5 |
| Pt-Rh10% | 1,850 | 20.10 | 90 | 190 | 284 | 19.2 |
| Pt-Rh20% | 1,885 | 18.80 | 100 | 220 | 394 | 20.8 |
| Pt-Ir5% | 1,790 | 21.50 | 90 | 140 | 274 | 19.0 |
| Pt-Ir10% | 1,800 | 21.60 | 130 | 230 | 382 | 24.5 |
| Pt-Ir20% | 1,840 | 21.70 | 200 | 300 | 539 | 32.0 |
| Pt-Ni10% | 1,580 | 18.80 | 150 | 320 | 441 | 32.0 |
| Pt-Ni20% | 1,450 | 16.80 | 220 | 400 | 588 | 34.1 |
| Pt-W8% | 1,850 | 21.27 | 200 | 360 | 588 | 62.0 |
For other materials, please contact us for further details.
*The property values are provided for reference purposes only and the adjustable range may vary depending on the shape. Therefore, please confirm
Applications
Gas sensors, other sensors, components for medical devices, various electrodes, heaters, Probe Pins, and others
Prevents decrease in strength caused by crystal grain coarsening in high-temperature environments, increasing the range of applications in harsh temperature environments.

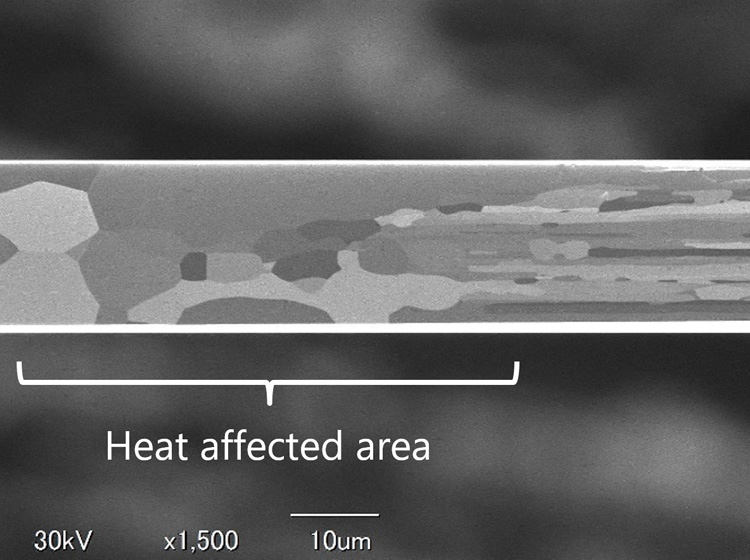

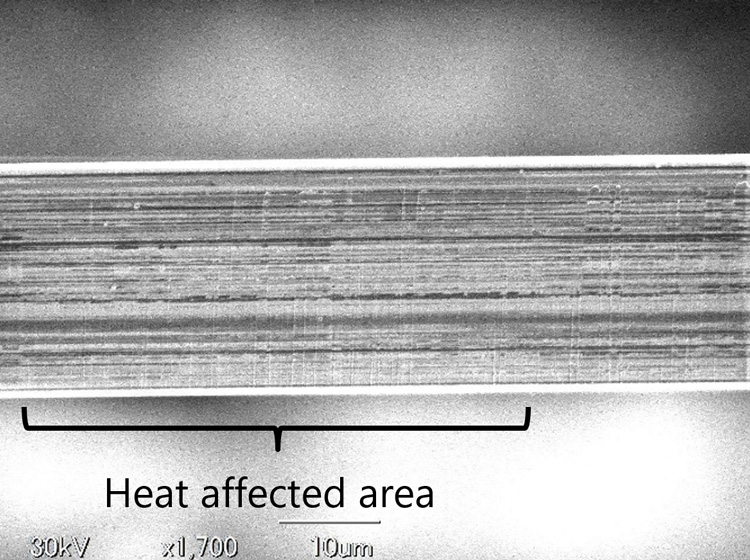

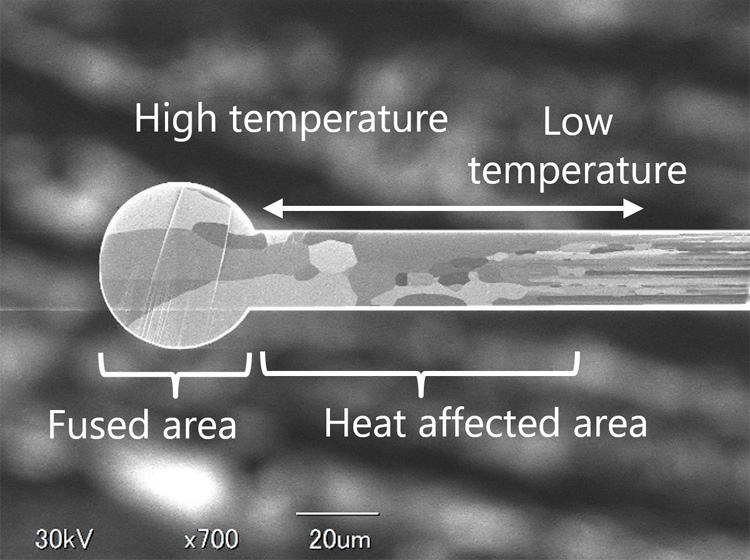

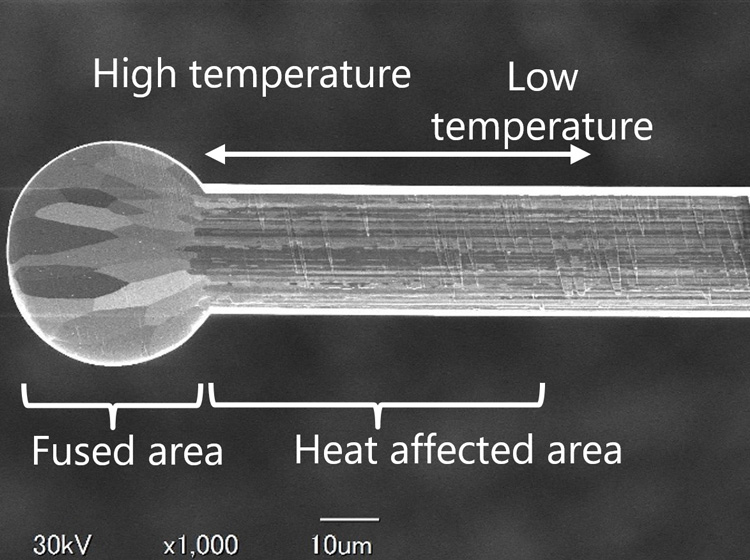

In high temperature environments, crystal grains become coarse, causing a significant decrease in strength. With nanoplat™, a strengthened platinum material with dispersed ZrO₂ particles developed by TANAKA, the dispersed oxide particles work to hold the crystal grains together even at high temperatures, reducing the coarsening of the crystal grains and thereby preventing a decrease in strength and extending the lifespan.
Features
- Prevents crystal grain coarsening in high temperature environments and reduces strength loss
- Has the same electrical properties as the base Pt
Pt
nanoplat™ Series
| Product name | Main Component | Zr content | High-Temperature Strength | Material Strength | Applicable wire diameter |
|---|---|---|---|---|---|
| nanoplat™BP | Pt | High | ◎ | ◎ | Φ250µm or more |
| nanoplat™TPW | Pt | High | ◎ | ◎ | 100µm or more |
| nanoplat™PW | Pt | Little | ○ | ○ | Φ15µm or more |
| nanoplat™APW | Pt | Little | ○ | ○ | Φ15 to 30µm |
nanoplat™BP
→For wire development of materials for platinum alloy equipment for glass manufacturing. Due to the presence of coarse oxide particles, can be used with wire diameters of Φ250µm and above.
nanoplat™TPW
→ nanoplat™BP's BP’s fine wire processing product. Fine oxide particles enable fine wire
nanoplat™PW
→Tapered wire with a minimum diameter of Φ15 µm can be processed by improving the thin wire of nanoplat™TPW and reducing the amount of Zr.
nanoplat™APW
→By adopting special coating technology, it provides low-cost support in the fine wire area.
※For other characteristics and required wire diameters, please make an Inquiry.
