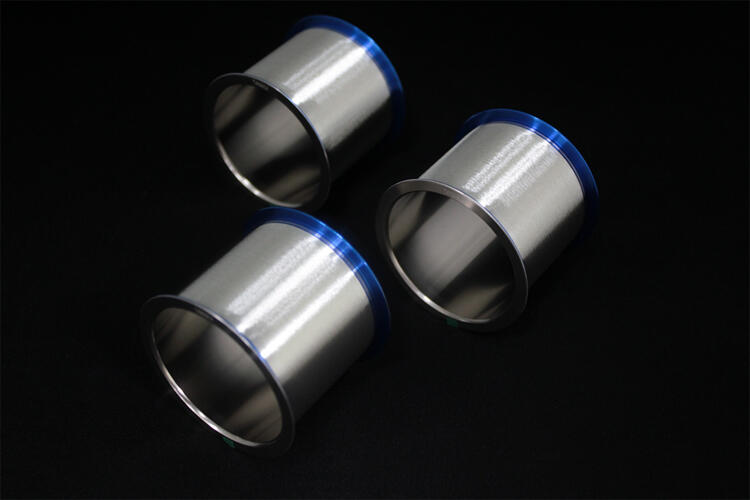

Silver Alloy Bonding Wire
What is "Silver Alloy Bonding Wire"?
This is a highly functional bonding material that utilizes the excellent electrical and thermal conductivity properties of silver while suppressing its tendency to oxidize through our proprietary alloy design. It combines excellent bonding properties with stable reliability thanks to its flexible FAB (free air ball) technology. It combines high performance with cost performance.
Turning the technologies of a precious metals manufacturer into tangible form
Silver (Ag) alloy bonding wires have excellent electrical and thermal conductivity. They are also effective wires for optical semiconductor devices such as LEDs as they have high reflectivity in the visible spectrum. In addition, as an alternative material for gold (Au) wires, costs can be reduced by approximately 80%.
SEA / SEC– Ag Alloy Bonding Wire
Features
- Reduce material cost with good bondability
- High reflectivity in short wavelength range
- Low Resistivity (SEC Type)
- Soft FAB (SEC type)

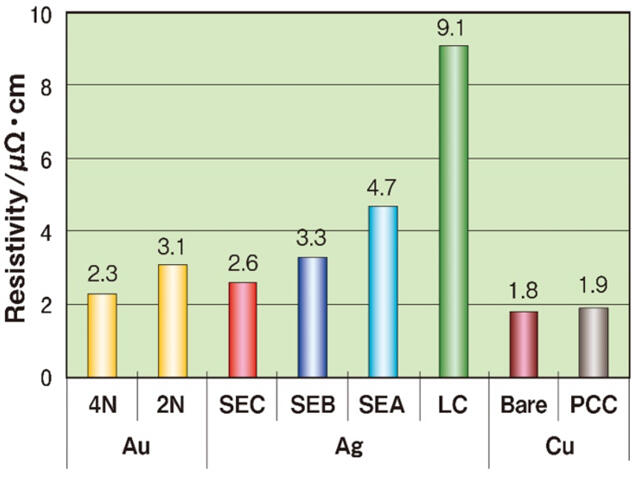

Resistivity
![[Resistivity Comparison Graph] 4N-2.3/2N-3.1/SEC-2.6/SEB-3.3/SEA-4.7/LC-9.1/Bare-1.8/PCC1.9](/jp/products/img/img_bonding_wires_ag_02.jpg)

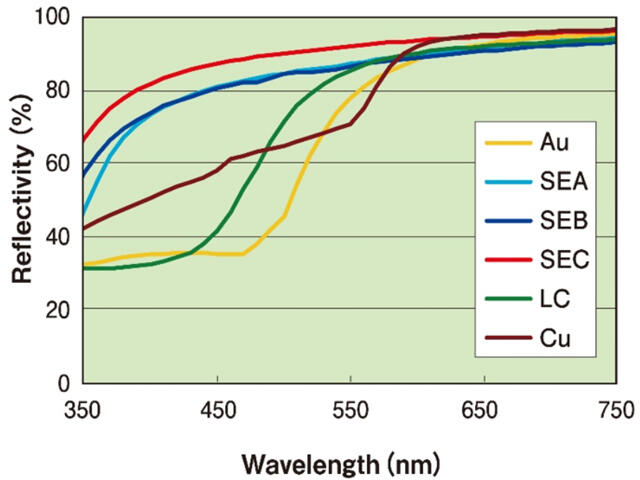

Reflectance
![[Reflectivity vs. Wavelength] Au/SEA/SEB/SEC/LC/Cu](/jp/products/img/img_bonding_wires_ag_03.jpg)

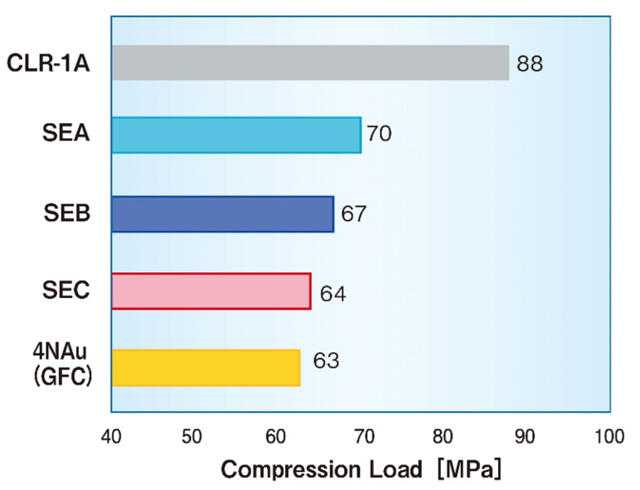

FAB compression
Wire dia. : 20µm
FAB dia. : 38µm
Equipment : MCT-W500（SHIMADZU）
Compression : FAB dia.×20%（8µm）
![[Compression load comparison graph] CLR-1A:88, SEA:70, SEB:67, SEC:64, 4NAu(GFC):63](/jp/products/img/img_bonding_wires_ag_05.jpg)

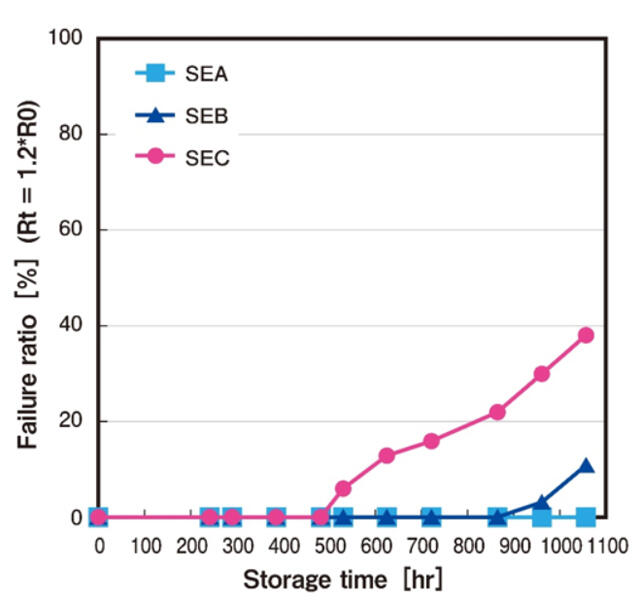

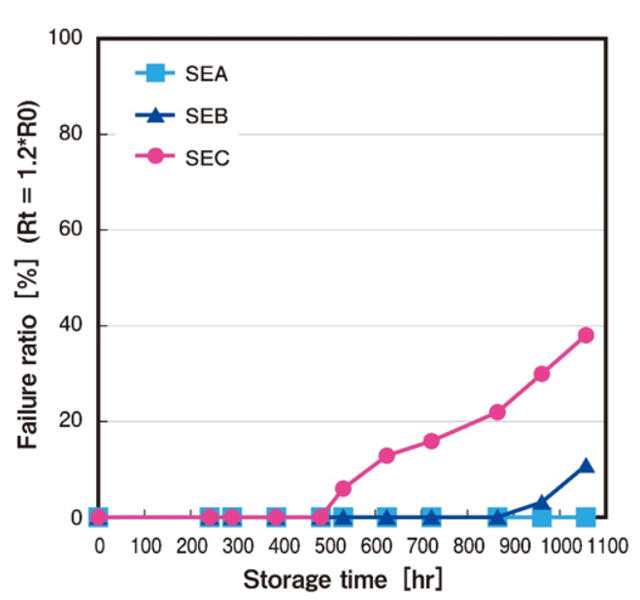

信頼性
uHAST 110degC × 85%RH
Wire Diameter: 18µm
Halogen Free Resin
pH: 6.0-7.0 Cl content: 15ppm
(without ion trapper)
![[Reliability - Comparison of Failure Ratios] SEA, SEB, SEC](/jp/products/img/img_bonding_wires_ag_06.jpg)
Download Technical Data
Technical data can be downloaded from the banner below.
