Carbon Recycling Catalysts

Energy/Hydrogen Society Powders, Compounds, Nanoparticles, and Pellet Catalysts Precious Metal Catalysts
[Image of carbon recycling catalyst products] (top) TRC30A, (left) TRC40A, (right) TRCS10

What are "Carbon Recycling Catalysts"?
Carbon Recycling Catalysts are precious metal catalyst products that contribute to carbon dioxide capture and utilization (CCU) technologies, which not only reduce CO2 emissions but also capture and convert CO2 into reusable carbon resources. This is a group of precious metal catalyst products that contribute to carbon dioxide capture and utilization (CCU) technology. These catalysts support a range of conversion processes, including dry reforming, reverse shift reactions, and methanation, enabling the effective utilization of CO2 as a valuable feedstock.

TANAKA's Carbon Recycling Catalysts

We provide methanation catalysts that generate methane fuel from CO2, a global warming substance released into the atmosphere, as well as carbon dioxide gas reforming catalysts and reverse shift catalysts that generate CO and hydrogen as chemical feedstocks, thereby contributing to addressing climate change.

Overview of Carbon Recycling Catalysts

Features

  • Uses ruthenium, platinum, and rhodium to meet various catalyst needs
  • High durability from use of precious metals
  • High catalytic activity can be maintained even with low precious metal content, enabling the supply of catalysts at low cost

Main product lineup

Reaction Product name Precious metals Particle size (sieve sorting)
Carbon dioxide reforming (H2O) TRC10 Series Ru Φ approx. 2mm
Carbon dioxide reforming reaction (O2) TRC40A Series Rh Φ approx. 2mm
Reverse shift reaction TRS30A Series Pt Φ approx. 2mm
Methanation reaction TRC10 Series Ru Φ approx. 2mm
  • We request for the signing of a Non-Disclosure Agreement (NDA) when providing samples and information such as precious metal content.
  • We also accept consultations regarding the prototyping and made-to-order production of customized catalysts to meet customer requests.

Carbon Dioxide Gas Reforming Catalyst (H2O)

These catalysts help to generate hydrogen (H2) and carbon monoxide (CO), which are used as raw materials for chemicals and fuels, from carbon dioxide (CO2) and methane (CH4)

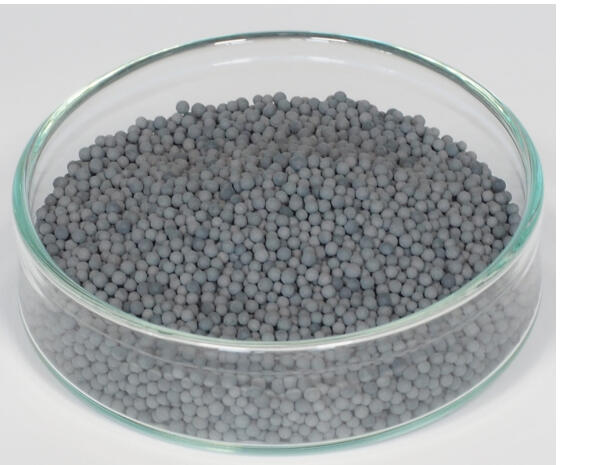

Reforming catalyst for carbon dioxide reforming (H2O)
TRC10

Characteristics of Carbon Dioxide Reforming Catalysts

TRC10〔Ru〕

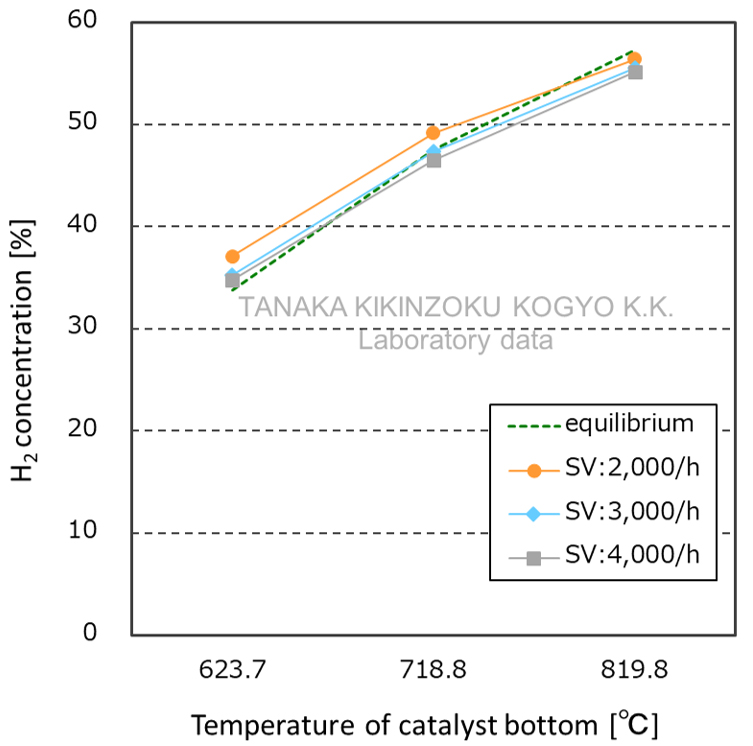

H2 generation concentration and SV-dependence
Characteristics of CO2 reforming - Graph of H2 generation concentration and SV dependence test results

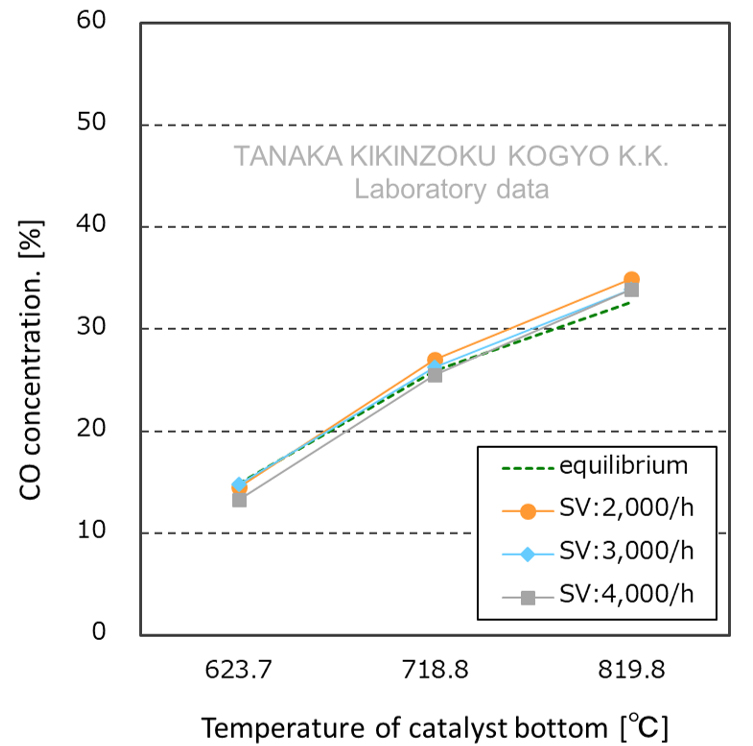

CO Generation Concentration and SV-Dependence
Characteristics of CO2 reforming - Graph of CO generation concentration and SV dependence test results
【TEST CONDITION】
Item Value (Unit)
CO2/(CO2+CH4) 30.00%
SV (wet) 2,000 – 4,000 /h
S/C 0.4
Pressure 0.3MPa(G)

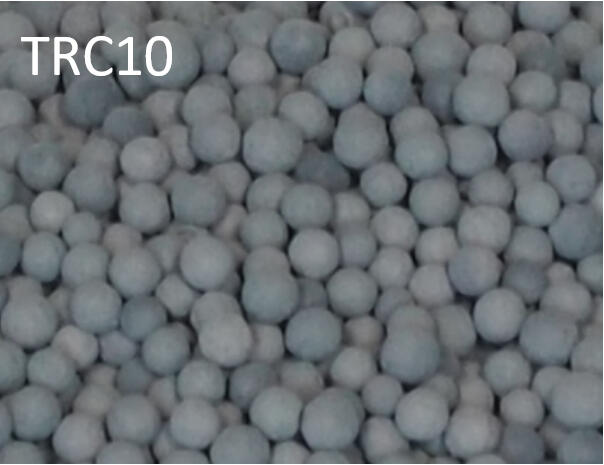

【Post-test catalyst】
Catalyst after use
  • ＊Reference data from laboratory tests.
  • ＊Data is provided as a guideline since it may vary depending on the evaluation conditions, preparation conditions, and operating environment of the catalyst.

Carbon Dioxide Gas Reforming Catalyst (O2)

Catalysts to generate hydrogen (H2) and carbon monoxide (CO) from carbon dioxide (CO2) and methane (CH4), which are used as raw materials for chemicals and fuels.

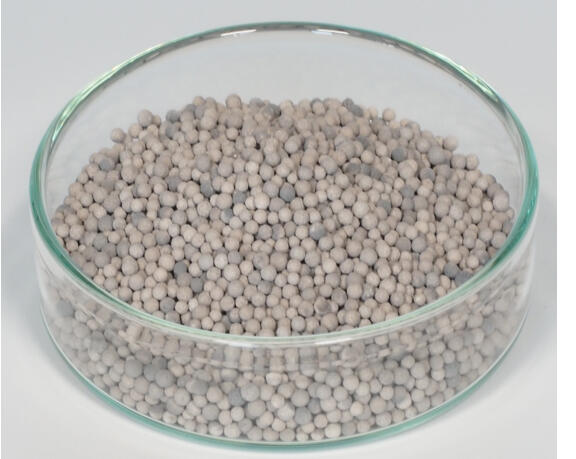

Reforming Catalyst for Carbon Dioxide (O2)
TRC40A

Characteristics of Carbon Dioxide Reforming Catalysts

TRC40〔Rh〕

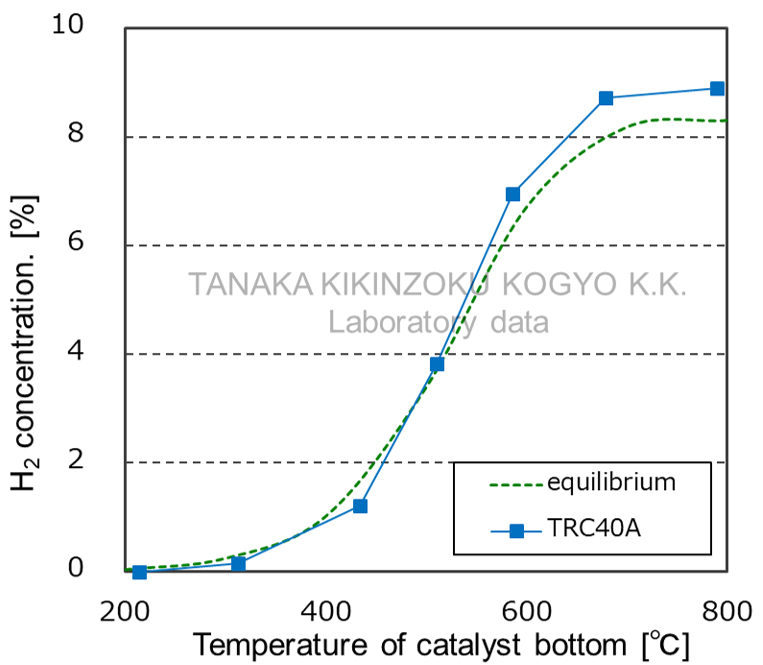

H2 generation concentration
Characteristics of Carbon Dioxide Reforming - Graph of Test Results for Hydrogen Generation Concentration
CO generation concentration

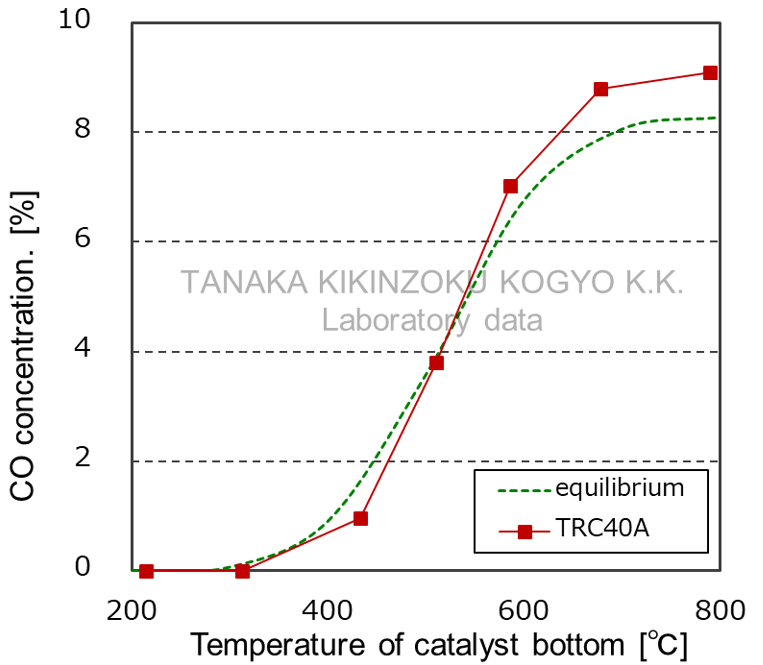

Characteristics of Carbon Dioxide Reforming - Graph of Test Results for CO Generation Concentration
【TEST CONDITION】
Item Value (Unit)
CH4 4.76%
CO2 4.76%
O2/CO2 0.1
SV 12,000 /h
Pressure Normal pressure
  • ＊Reference data from laboratory tests.
  • ＊Data is provided as a guideline since it may vary depending on the evaluation conditions, preparation conditions, and operating environment of the catalyst.

Reverse Shift Catalyst

Generating CO from carbon dioxide (CO2) and hydrogen (H2), which are used as raw materials for chemicals and fuels.

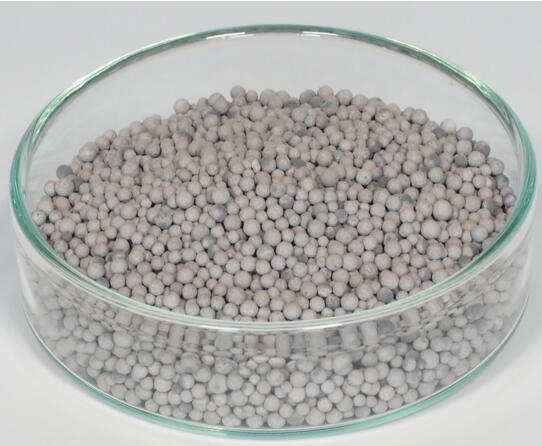

Reverse Shift Catalyst

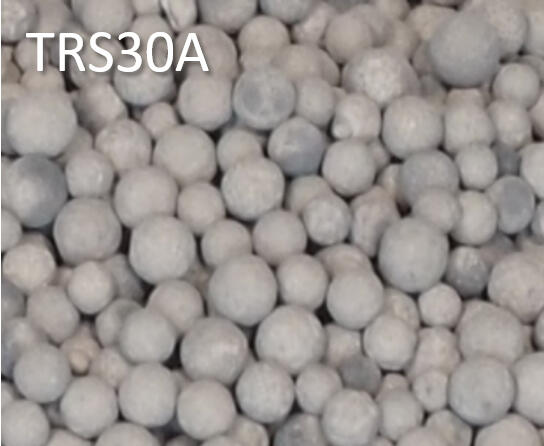

TRS30A

Reaction Characteristics of Reverse Shift Catalyst

TRS30A Series〔Pt〕

【TEST CONDITION】
Item Value (Unit)
CO2 5%
H2 5%
SV (wet) 48,000 /h
【Post-test catalyst】

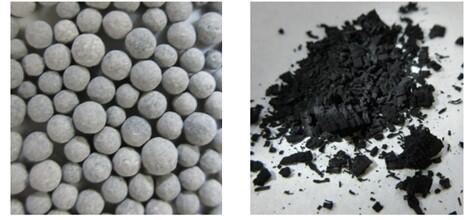

Catalyst after use
CO generation concentration

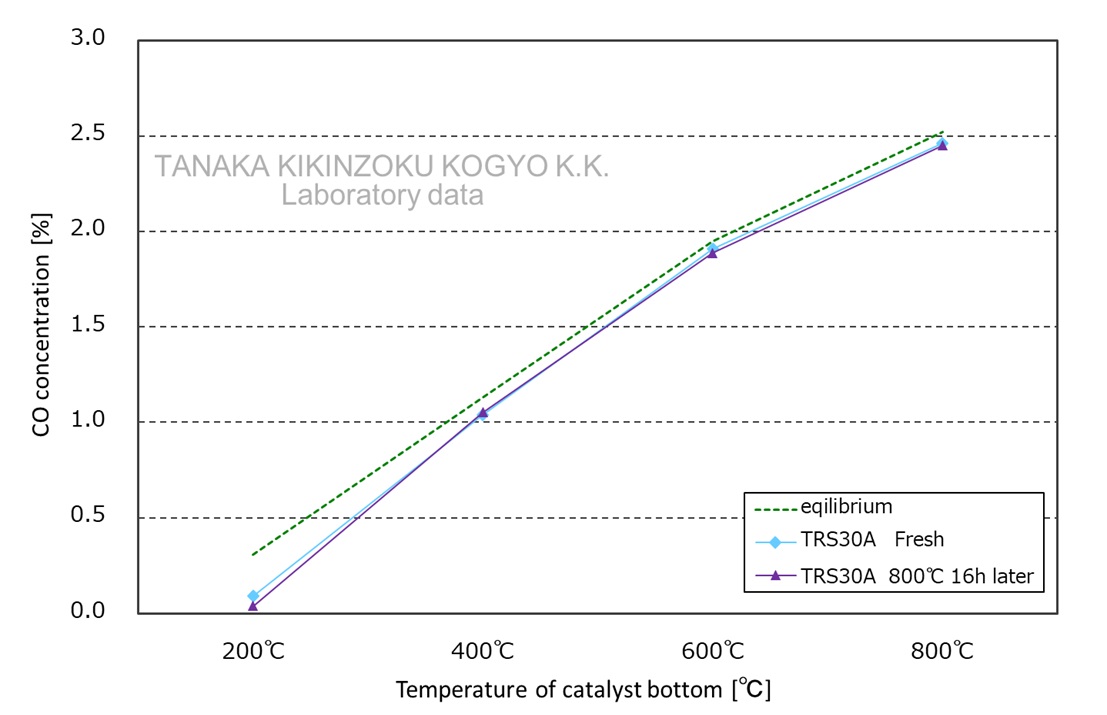

Reaction Characteristics of Reverse Shift Catalyst: Graph of Test Results for CO Generation Concentration
  • ＊Reference data from laboratory tests.
  • ＊Data is provided as a guideline since it may vary depending on the evaluation conditions, preparation conditions, and operating environment of the catalyst.

Methanation Catalysts

Synthesis of methane (CH4), which is used as a raw material for city gas, from carbon dioxide (CO2)—a substance that causes global warming—and hydrogen (H2)

Methanation Catalyst TRC10

Reaction characteristics of Methanation Catalyst

TRC10〔Ru〕

【TEST CONDITION】
Item Value (Unit)
H2 75%
CO2 19%
N2 5%
GHSV(h-1) 3,000~9,000 /h

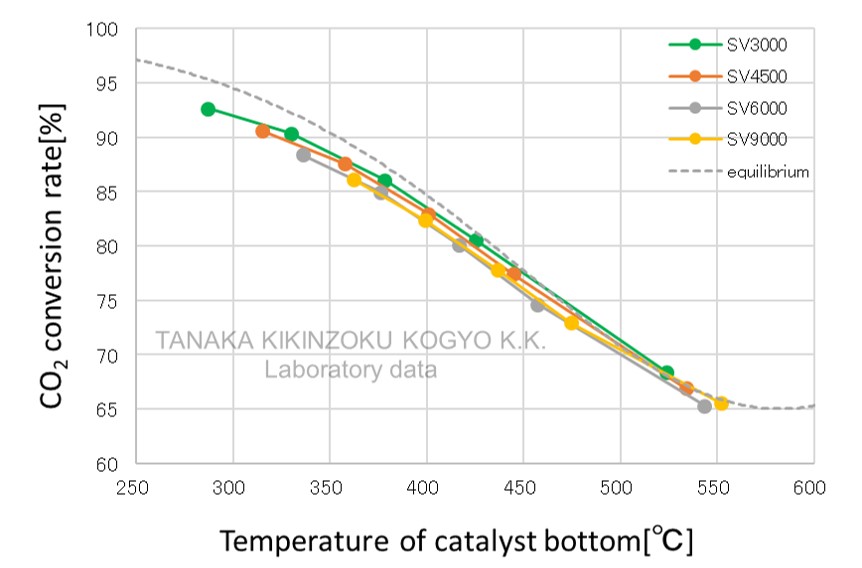

CO2 Conversion Rate, SV-dependence
Reaction Characteristics of Methanation Catalyst - Graph of Test Results on CO2 Transfer Rate Dependence on SV
  • ＊Reference data from laboratory tests.
  • ＊Data is provided as a guideline since it may vary depending on the evaluation conditions, preparation conditions, and operating environment of the catalyst.

Methane Combustion Catalyst (sulfur-resistant)

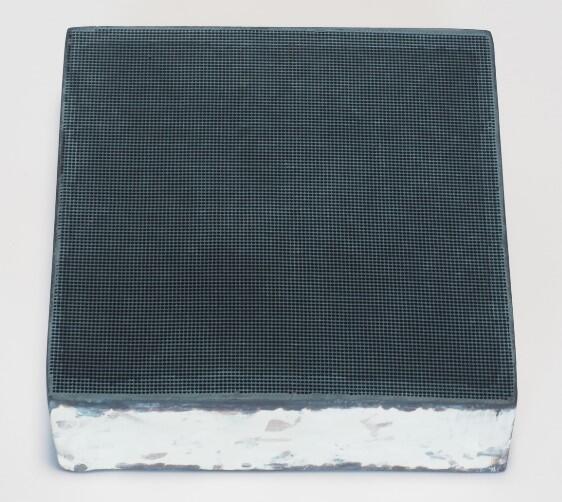

Methane Combustion Catalyst (sulfur-resistant)

Features

  • Allows combustion of methane at relatively low temperatures
  • Enhanced resistance to sulfur, reducing deterioration of catalytic performance due to sulfur

Main product lineup

Product name Active species Shape Features
CC41 Pt/Ir Honeycomb Maintains high sulfur resistance
  • We request for the signing of a Non-Disclosure Agreement (NDA) when providing samples and information such as precious metal content.
  • We also accept consultations regarding the prototyping and made-to-order production of customized catalysts to meet customer requests.

Characteristics of Methane Combustion Reaction

CC41〔Pt/Ir〕

SV dependence

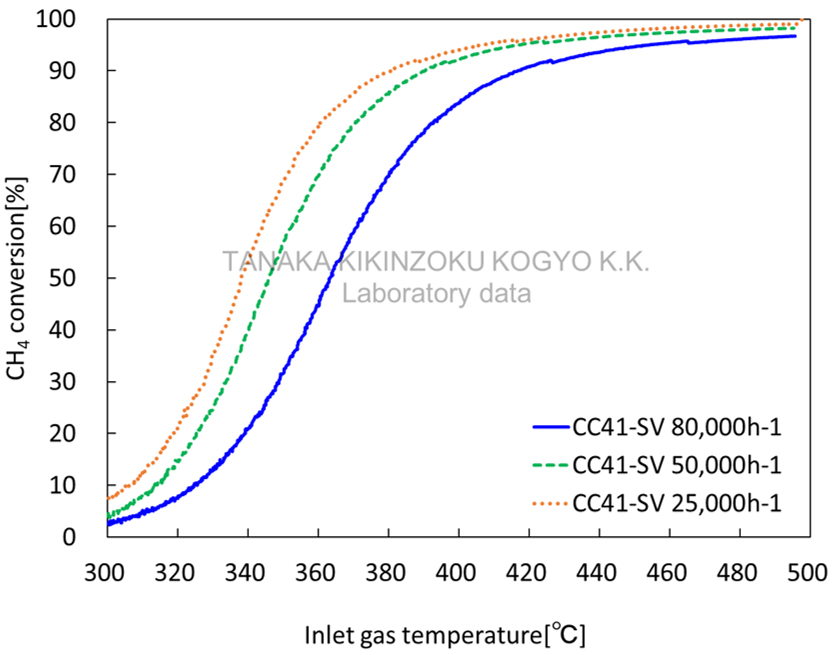

Characteristics of Methane Combustion Reaction - SV Dependence Test Result Graph

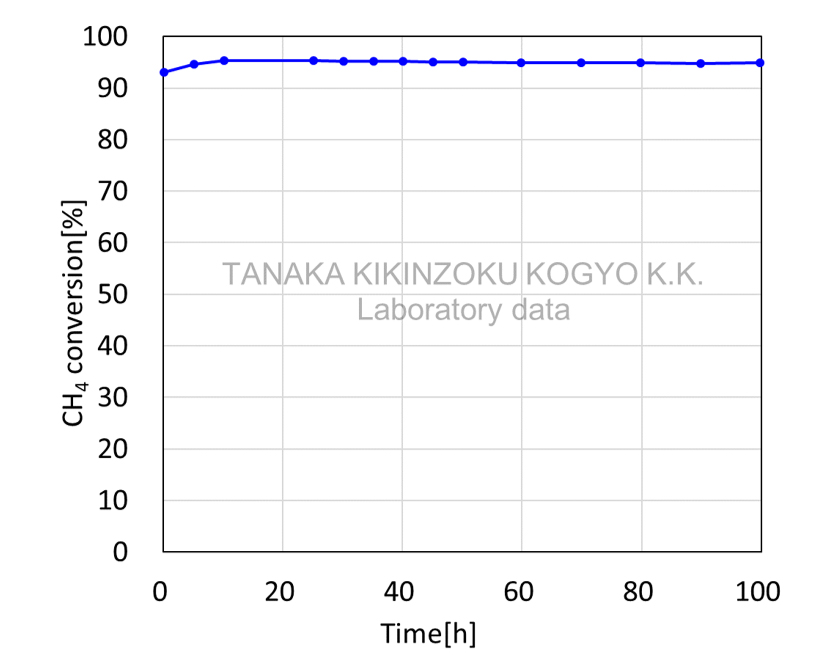

Changes in Performance upon Introduction of Sulfur
Characteristics of Methane Combustion Reaction - Graph of Performance Changes during Sulfur Introduction
【TEST CONDITION】
Item Value (Unit)
CH4 2,000 ppm
O2 10%
H2O 10%
SV 25,000 – 80,000 /h
【TEST CONDITION】
Item Value (Unit)
CH4 2,000 ppm
O2 10%
H2O 10%
SV 50,000 /h
S 1 ppm

It maintains its performance even during methane oxidation containing sulfur.

  • ＊Reference data from laboratory tests.
  • ＊Data is provided as a guideline since it may vary depending on the evaluation conditions, preparation conditions, and operating environment of the catalyst.

Related Information

Total Solutions by TANAKA

Product Solutions > Total Solutions by TANAKA

The Role of Precious Metals in Contributing to Carbon Neutrality

Product Solutions ＞ Role of Precious Metals in Contributing to Carbon Neutrality

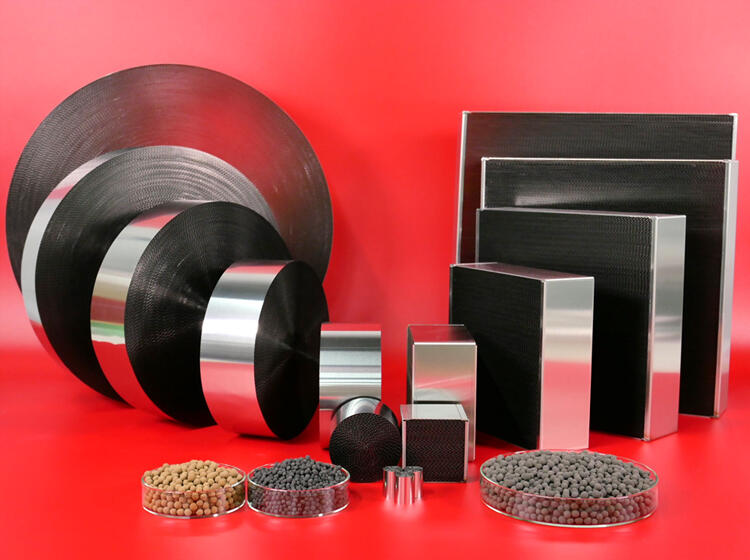

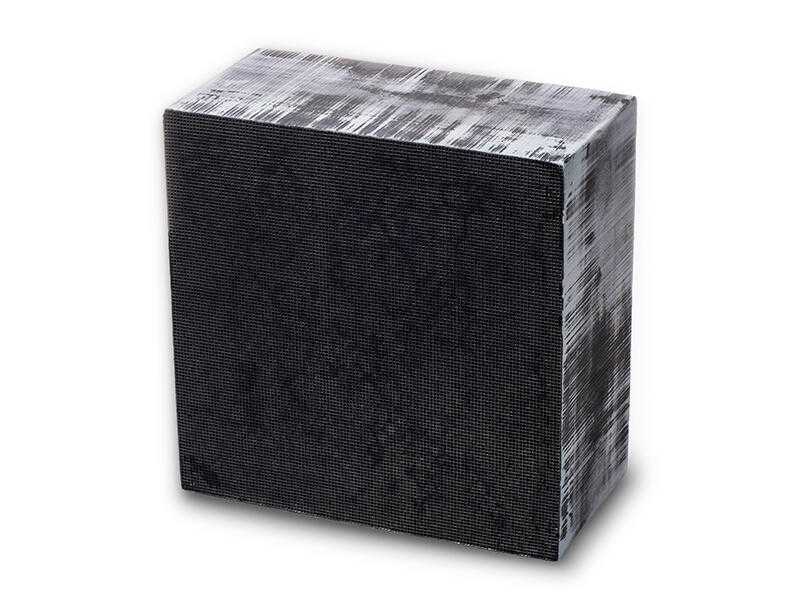

exhaust gas purification catalyst

Products/Services > Exhaust gas purification catalysts (oxidation, deodorization, VOC, combustion catalysts)

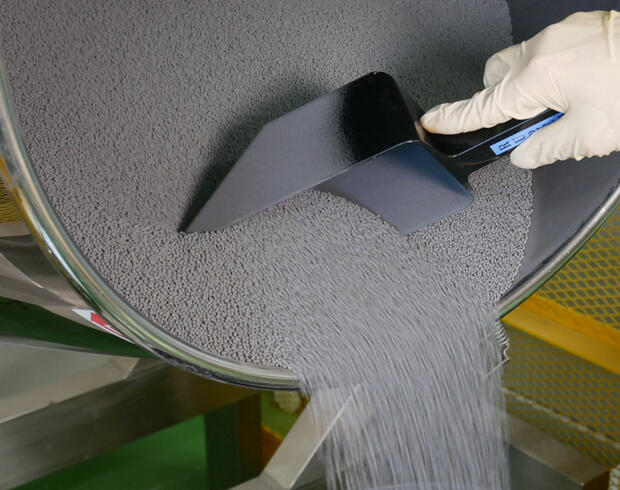

Reforming, Isomerization, and PROX Catalysts

Products/Services > Reforming Catalysts, Shift-Reaction Catalysts & PROX Catalysts

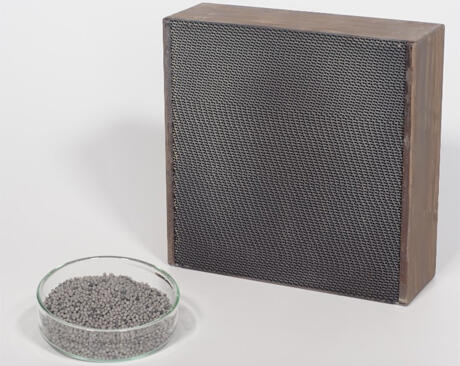

Ammonia-Related Catalysts
