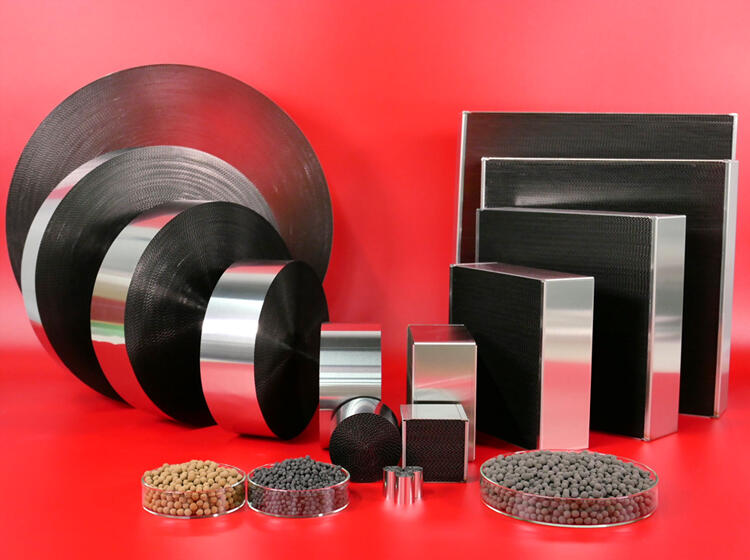

Exhaust Gas Purification Catalysts (Oxidation-, Deodorization-, VOC-, and Combustion Catalysts)

Metal Honeycomb Catalyst

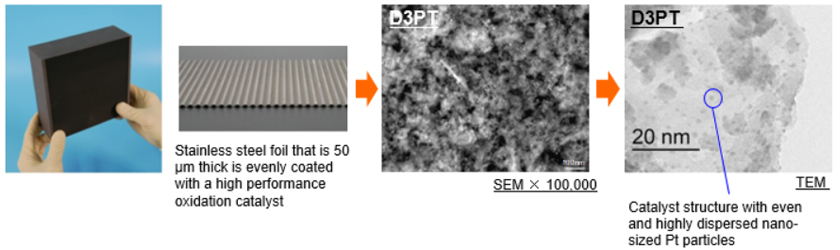

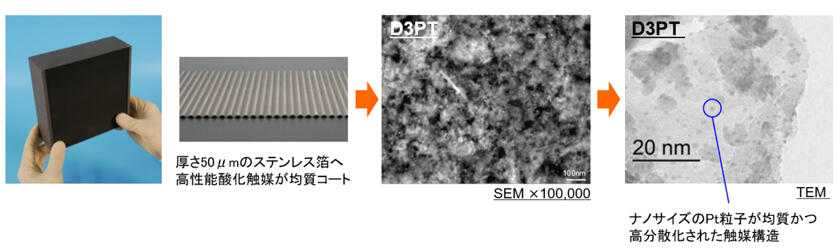

Features

• Has a large surface area and high catalytic reactivity due to the use of a honeycomb structure
• High opening ratio and low pressure loss due to thin wall thickness of honeycomb structure
• Compared to ceramic honeycombs, they have more freedom in size and can be square, round, or larger.
• Higher strength than ceramic honeycombs and easier to handle, as it is a metal honeycomb

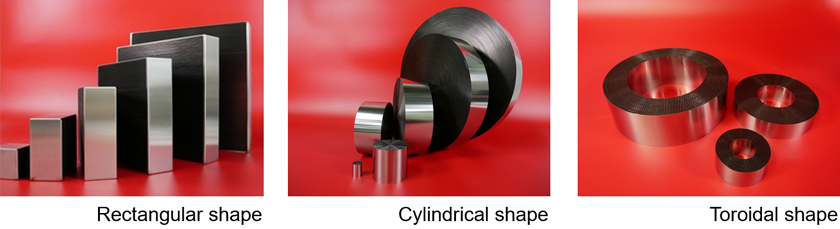

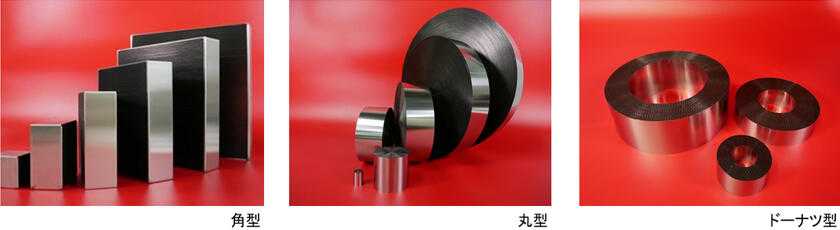

Shape

Size (example)

Various sizes from small to large are available, mainly in square and round shapes.

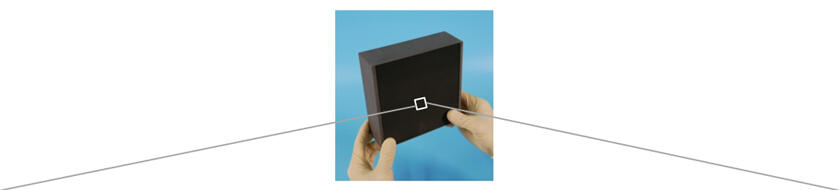

Cell density

CPSI (Cell/in2)	100	150	200	260 (Standard)	300 (Standard)	400 (Standard)	500
Pitch/ Height (mm)	6.6/1.90	5.2/1.60	4.0/1.60	3.2/1.50	3.2/1.30	3.2/0.96	3.2/0.75
Appearance

By controlling cell density, we can propose designs with the required pressure loss and catalyst performance.

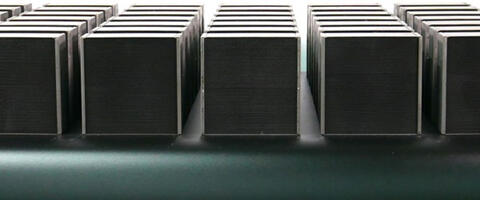

Basic Properties

Click each item to view data showing characteristics.

• Example of cell density and catalytic purification characteristics (achieved purification efficiency)
• Relationship between cell density and pressure loss
• Example of SV and VOC removal efficiency
• Example of Precious Metal Content and Catalyst Activity

Example of Purification Characteristics by Exhaust Gas Components

Click each constituent to view removal performance data.

Please make an Inquiry regarding other exhaust gas components.

• For more information on metal honeycomb catalysts, please see〔Product Solutions: TANAKA's Exhaust Gas Purification Catalysts〕.

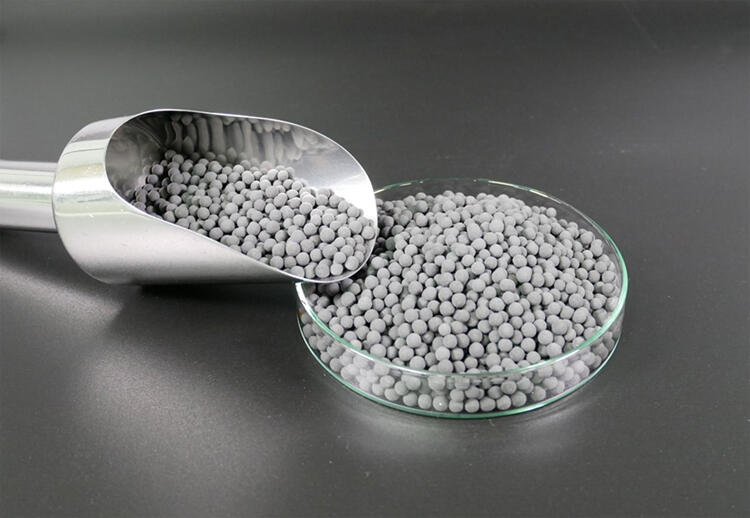

Pellet Catalysts

Features

• Spherical pellets with diameters of Φ3 mm and Φ5 mm are used as standard.
• Our standard lineup includes highly active Pt and Pd catalysts
• Low cost and high performance

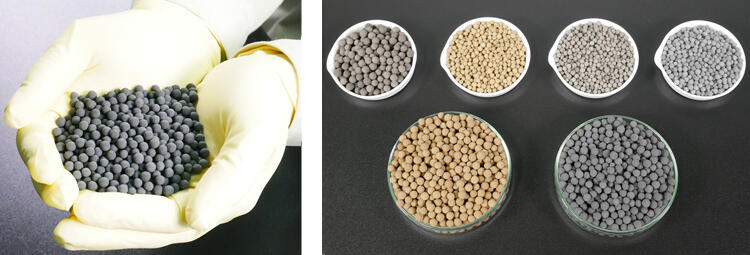

Main Types of Catalysts

We offer consultations regarding the trial manufacture and contract of catalysts that have been customized in accordance with customer needs (Pt content changes, Pd content, etc.).

Exhaust gas purification features

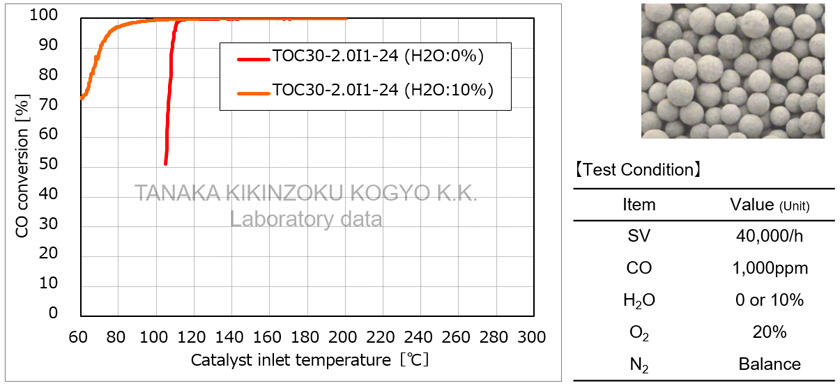

Carbon monoxide

Note: Second initial measurement results for elevated temperature testing

This is approximate data as results are affected by factors such as catalyst evaluation conditions, manufacturing conditions and usage environment.

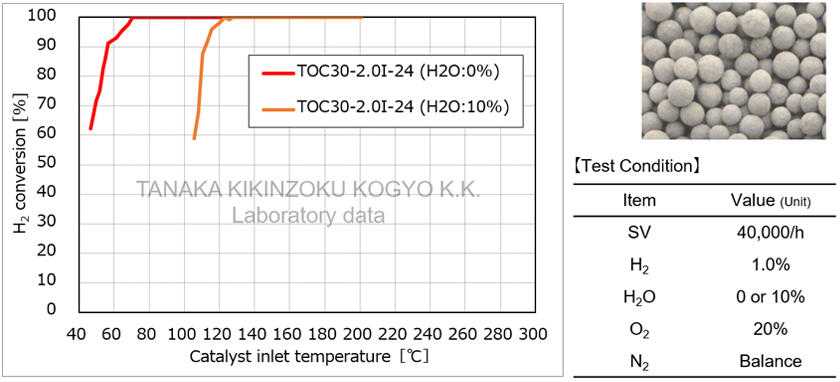

Hydrogen

Note: First initial measurement results for elevated temperature testing

This is approximate data as results are affected by factors such as catalyst evaluation conditions, manufacturing conditions and usage environment.

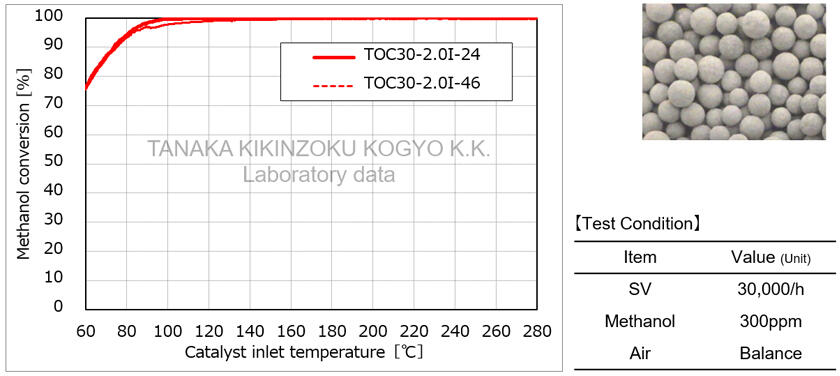

Methanol

Note: Third initial measurement results for elevated temperature testing

This is approximate data as results are affected by factors such as catalyst evaluation conditions, manufacturing conditions and usage environment.

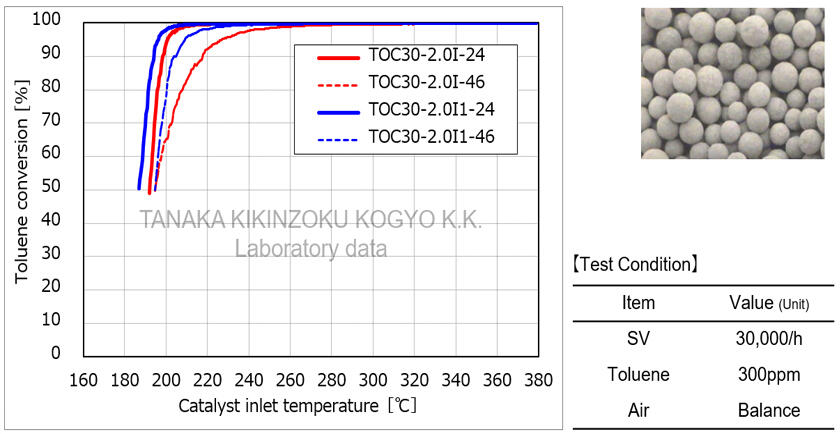

Toluene

Note: Third initial measurement results for elevated temperature testing

This is approximate data as results are affected by factors such as catalyst evaluation conditions, manufacturing conditions and usage environment.

Please make an Inquiry regarding other exhaust gas components.

Related Information

Product Solutions: TANAKA's Exhaust Gas Purification Catalysts

We offer metal honeycomb catalysts and pellet catalysts that decompose exhaust gas into harmless water and carbon dioxide.

Product Solutions ＞ Role of Precious Metals in Contributing to Carbon Neutrality

TANAKA's initiatives and products that contribute to carbon neutrality.

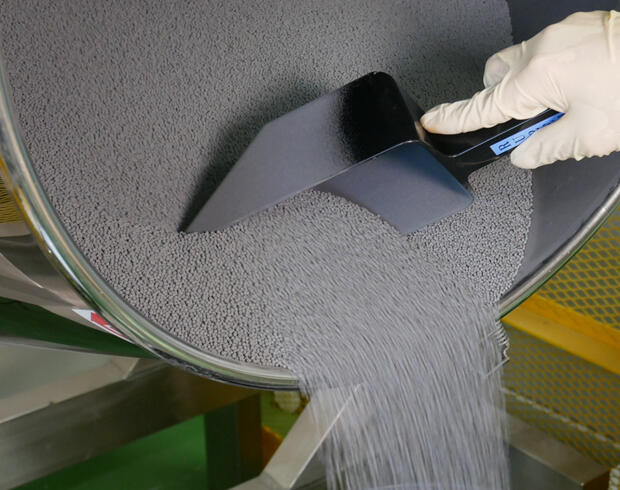

Products/Services: Reforming Catalysts, Shift-Reaction Catalysts, and PROX Catalysts

We introduce reforming catalysts, shift-reaction catalysts, and PROX catalysts used in hydrogen production processes.

Products/Services: carbon recycling catalyst

We introduce carbon dioxide gas reforming catalyst, reverse shift catalyst, and methanation catalyst.

Products/Services: Ammonia-Related Catalysts

We introduce ammonia reforming catalysts and catalysts for suppressing and decomposing NOx and N ₂ O.

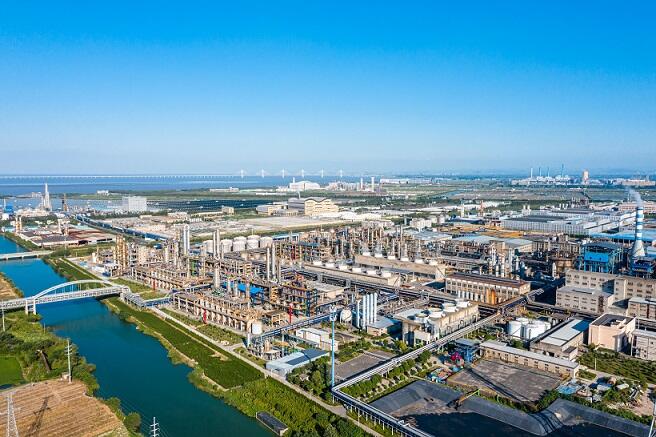

TANAKA's technological strengths—high-performance catalysts that are “Made in Japan” and contribute to the Chinese industrial sector  BUSINESS INSIDER JAPAN
