Bumping Wires

Bumps can be formed with minimum variance in height.

Our bumping wires are available with bump formation methods for increasingly smaller, thinner, and higher-density electronics packaging. Bumps can be formed on semiconductor devices, such as ICs and LSIs, and other microelectronic devices at a lower cost and with a minimum variance in height.

Features

  • Bumps can be formed with a minimum variance in neck height
  • Bumps can be formed with a minimum variance in shape
  • Suitable for small-volume production

Au Alloy Bumping Wire

GBC Type

Features

  • In the high temperature storage test (200°C), the shear strength after bump formation, decreases less than other bumping wires (GBC)

Au Bumping Wire

GBE Type

Features

  • Chips are not damaged during bump formation
[Neck height comparison graph] GBC, GBE, LOw loop wire, Middle loop wire, High loop wire

Neck Height

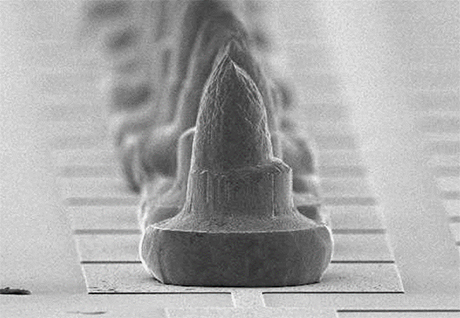

GBE type bump shape

Bump Shape
